Cable Tester / Wire Tester CT-8681FA input 115/230Vac output 5Vda

Cable Tester / Wire Tester CT-8681FA input 115/230Vac output 5Vda

Regular price $350.00
Regular price Sale price $350.00
Sale Sold out
Tax included. Shipping calculated at checkout.

Sku - 46033 |  WFS - 14200 | Weight - 12500

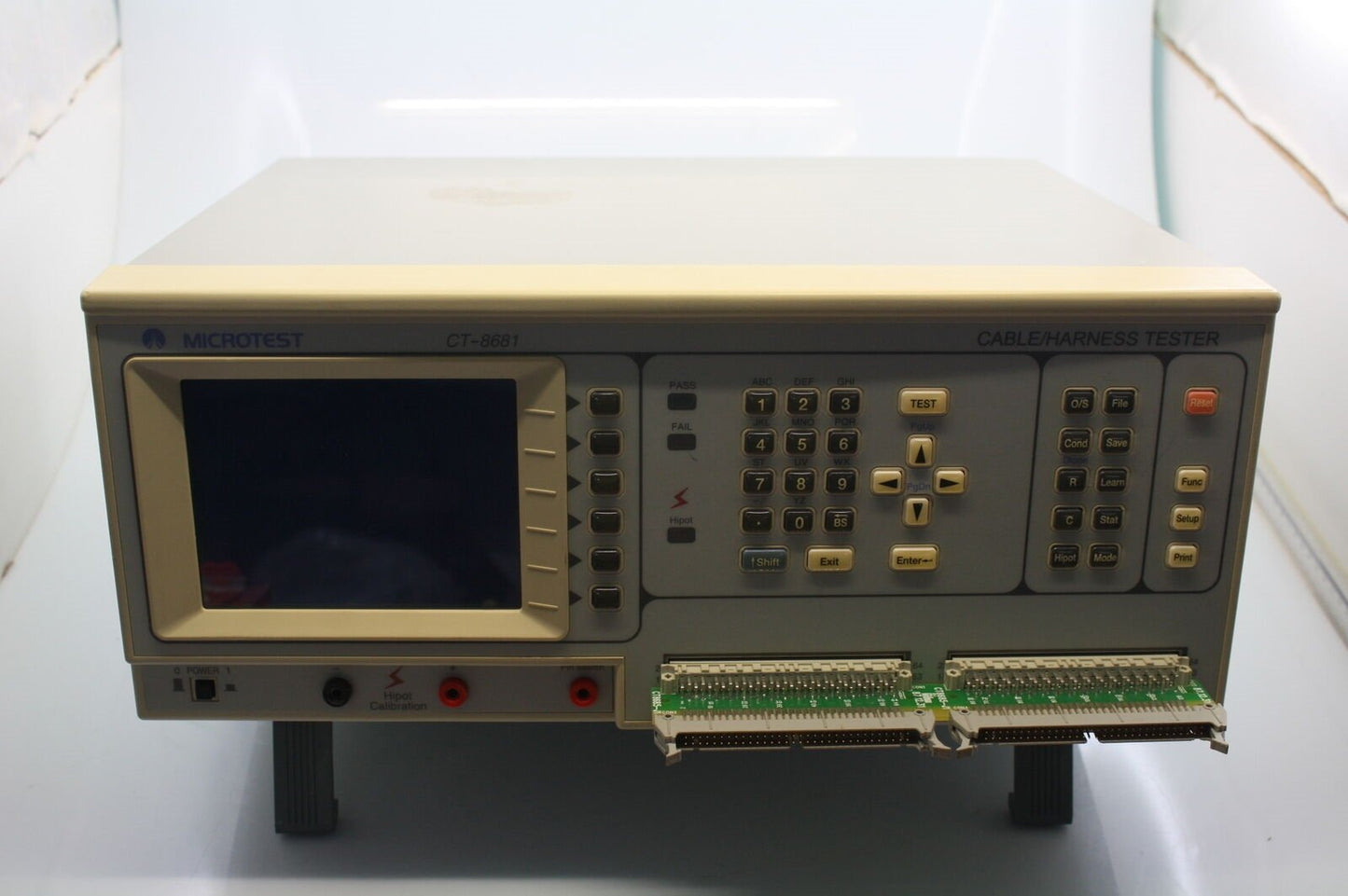

Cable Tester / Wire Tester CT-8681FA

Cable Tester / Wire Tester CT-8681FA/CT8681FA Series
MICROTEST benefits and CT-8681FA apply to all kinds of cable, connectors, A / V audio / video connection cable, AC / DC plug to connect the money and so the parts production line testing or incoming inspection with the buyer. As the product easy to use I Pi Jia, already has more than 80% market share.


PRODUCT FEATURES:

Chinese language interface system

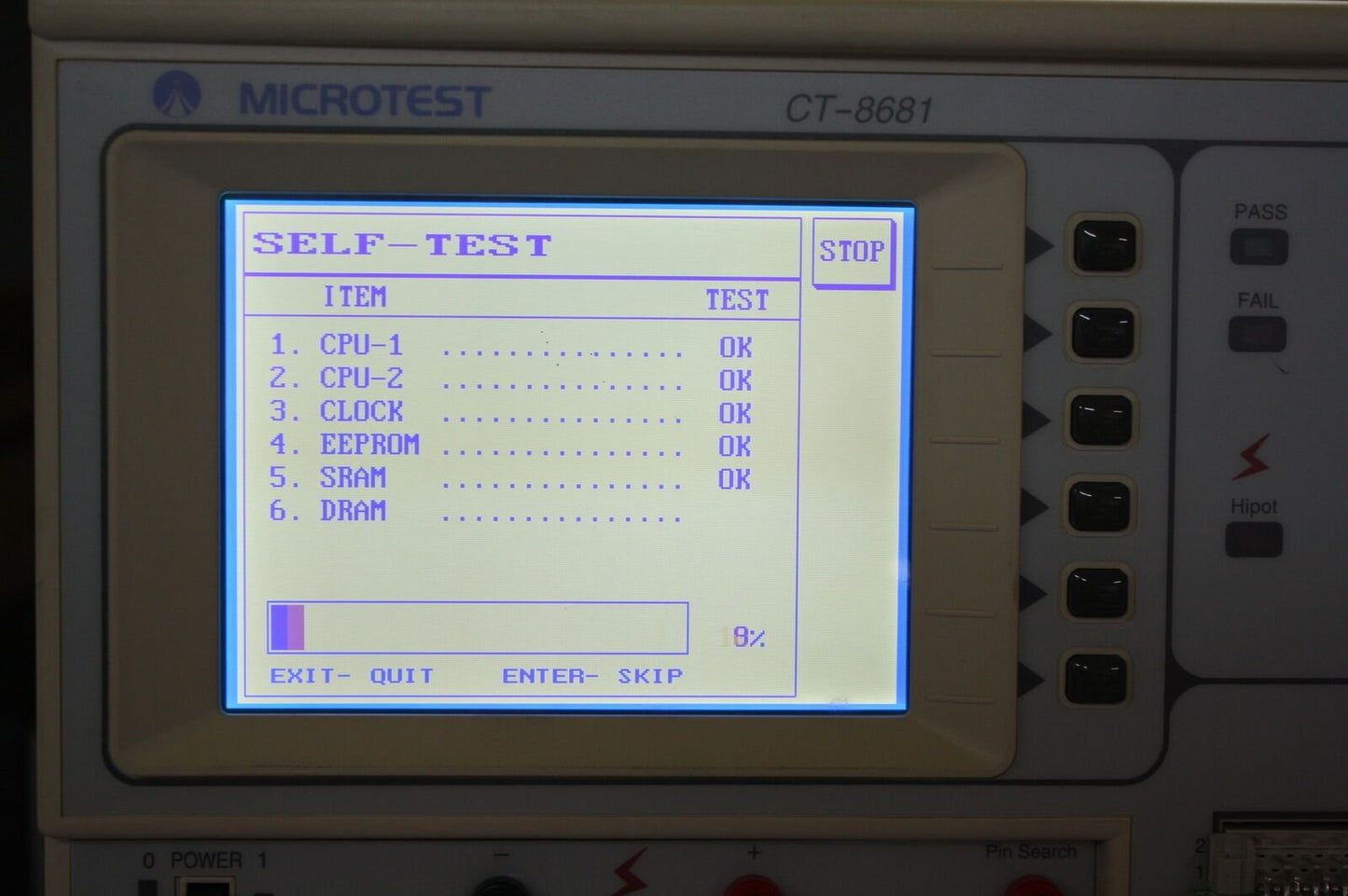

Power self-diagnosis and self-correction
The system can automatically scan automatically find point
System provides advanced instant off short-circuit / on-test
Wire can be used for unilateral test / Insulation test
Highest DC700V, AC500V test voltage
Maximum test point measurement 128/256/512
320 * 240 resolution round liquid crystal display
Ranging linear and Safety Test
Fully programmable continuous test
A variety of interfaces, can be used for a variety of different applications
System to provide statistical and computer networks printing function

SPECIFICATION:

Advanced Features
Programmable continuous test
Automatically find point
Automatic diagnosis
Zero self-correction
Basic accuracy
±5%
Test Scan Mode
Auto / short scan switchable

Measurement time

0.1SEC basic values
Measuring frequency and signal / voltage
Low voltage measurement signals
Rated output 5Vda
High-voltage insulation testing
200~700Vdc200~500Vac
50V Resolution
± 5% accuracy
Display / audio devices
320/240 resolution LCD graphics display
Pass/Fail LED
Red and green light / written show / sound
Contact Measurement
Measuring 128 contacts
Optional 256/512 junction
Positive and negative side output (+/-) pressure correction
Automatically find point terminal
Control Panel
System / fast / edit / function keys Groups

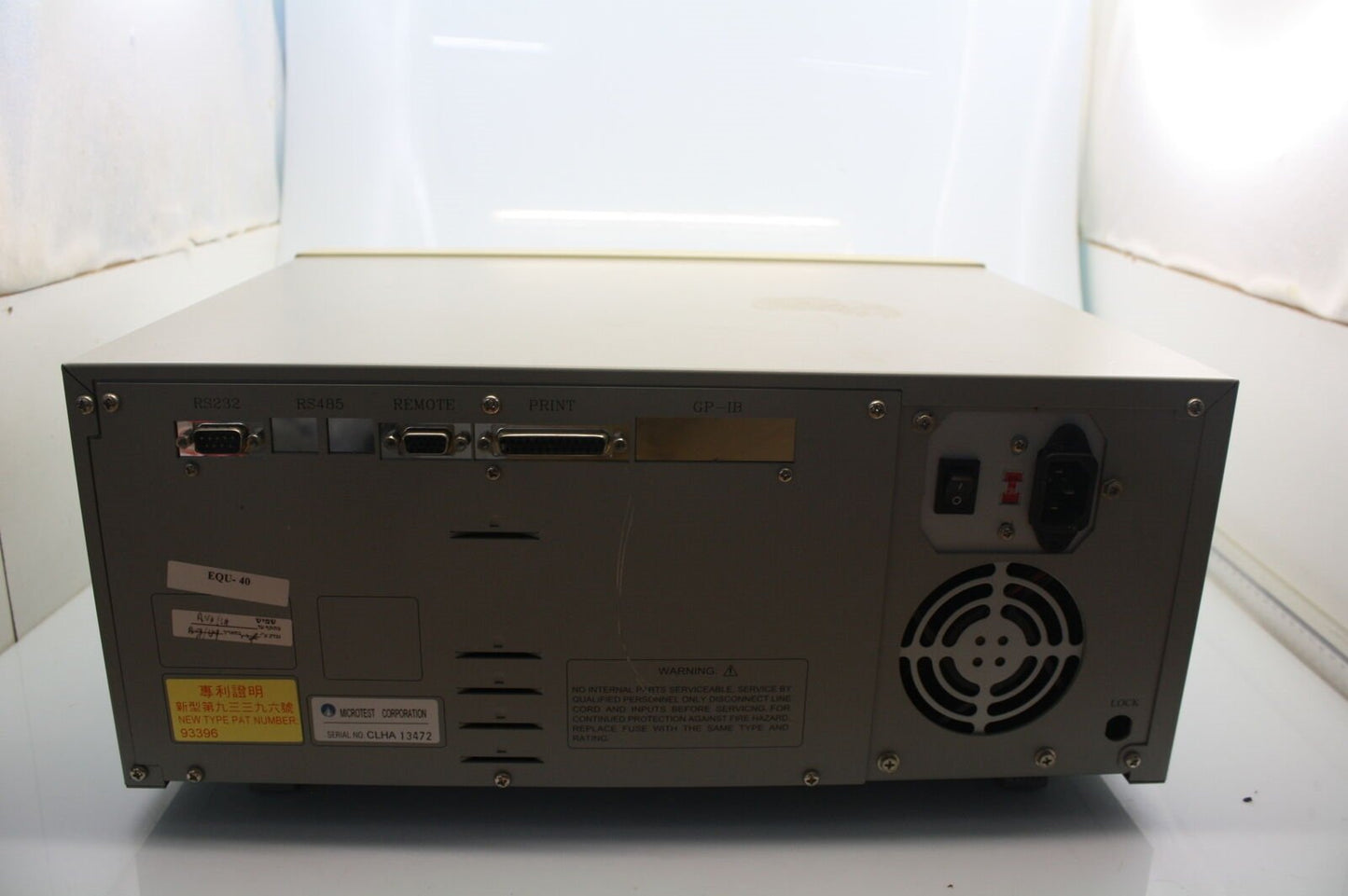

Interface
RS-232 communication port
Printer port
Remote control port
Memory device
Flash Memory
Can save up to 56 group test configuration files

Power Supply
115/230Vac input voltage10%
60/50Hz
Fitting
Automatically find point probe
Remote control cable (optional)
RS-232 signal line
Power Line
Manual
Temperature and humidity
15~ 35Celsius
RH 75% relative humidity
Dimensions (W * H * D)
425*190*350mm

Weight

Weighs about 14 kg (without accessories)
Wire specifications
Highest 1uF
Ordering Information
CT-8681N 200~700Vdc; Resistance 1M
Insulation 1M~500M
CT-8681F 200~1000Vdc; Resistance 1M
Insulation 1M~500M
CT-8681FA 200~700Vdc;100~500Vac
Resistance 1M;
/C2 256 Test point
/C3 512 Test point
