Hamamatsu R6233 HeadOn Dia 3" 76mm PMT Photomultiplier Tube Gamma CR Radiology

Hamamatsu R6233 HeadOn Dia 3" 76mm PMT Photomultiplier Tube Gamma CR Radiology

Regular price $120.00
Regular price Sale price $120.00
Sale Sold out
Tax included. Shipping calculated at checkout.

Sku - 56750 |  WFS - 200 | Weight - 150

Hamamatsu R6233 HeadOn Dia 3" 76mm PMT Photomultiplier Tube Gamma CR Radiology

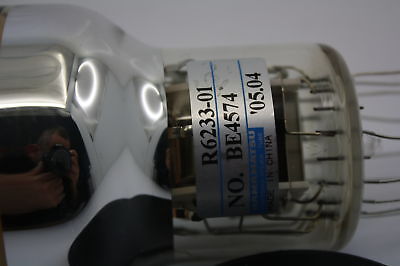

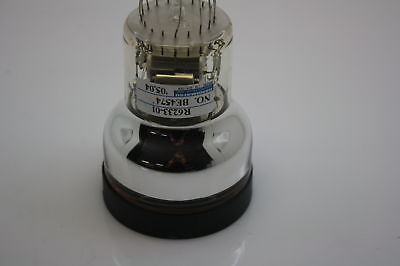

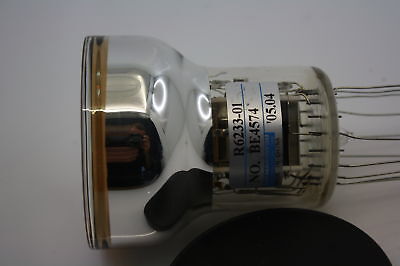

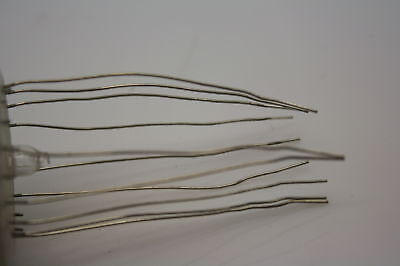

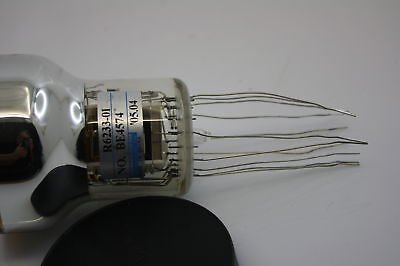

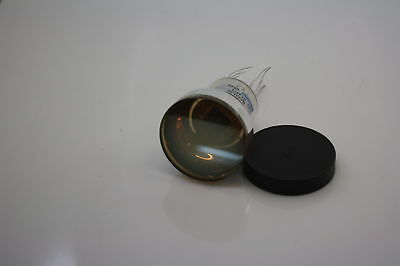

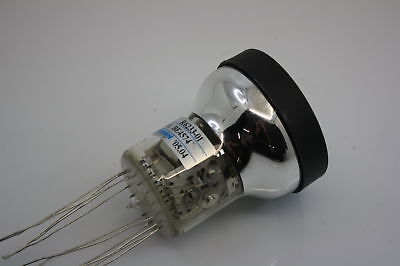

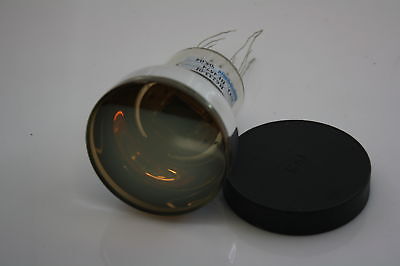

Hamamatsu R6233 Head On PMT Photomultiplier Tube

New never used Date code 05.04

Type

Head-on type

Tube Size

Dia. 3 inch or 76 mm

Photocathode Area Shape

Round

Photocathode Area Size

Dia.70 mm

Wavelength (Short)

300 nm

Wavelength (Long)

650 nm

Wavelength (Peak)

420 nm

Spectral Response Curve Code

400K

Photocathode Material

Bialkali

Window Material

Borosilicate glass

Dynode Structure

Box-and-grid+Linear-focused

Dynode Stages

8

[Max. Rating] Anode to Cathode Voltage

1500 V

[Max. Rating] Average Anode Current

0.1 mA

Anode to Cathode Supply Voltage

1000 V

[Cathode] Luminous Sensitivity Min.

80 μA/lm

[Cathode] Luminous Sensitivity Typ.

110 μA/lm

[Cathode] Blue Sensitivity Index (CS 5-58) Typ.

12.0

[Cathode] Radiant Sensitivity Typ.

95 mA/W

[Anode] Luminous Sensitivity Min.

3 A/lm

[Anode] Luminous Sensitivity Typ.

30 A/lm

[Anode] Radiant Sensitivity Typ.

2.6 x 104 A/W

[Anode] Gain Typ.

2.7 x 105

[Anode] Dark Current (after 30min.) Typ.

2 nA

[Anode] Dark Current (after 30min.) Max.

20 nA

[Time Response] Rise Time Typ.

9.5 ns

[Time Response] Transit Time Typ.

52 ns
