NEW NIB ETL IRTEL Inset Airport Runway Light Threshold/End Center 2x105 Watts

NEW NIB ETL IRTEL Inset Airport Runway Light Threshold/End Center 2x105 Watts

$177.16
$177.16
Sale Sold out
Tax included. Shipping calculated at checkout.

Sku - 9365 |  WFS - | Weight - 5000

NEW NIB ETL IRTEL Inset Airport Runway Light Threshold/End Center 2x105 Watts

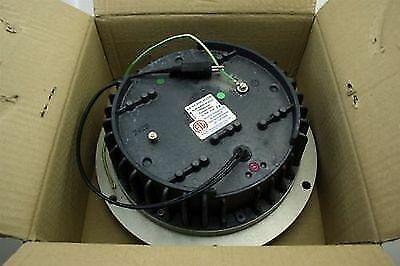

 Never used no box

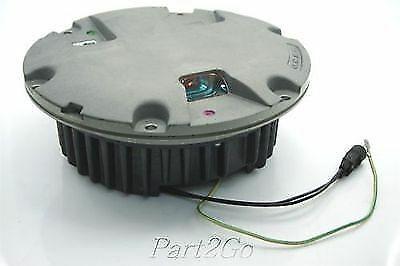

NEW Runway Threshold/End Center Light

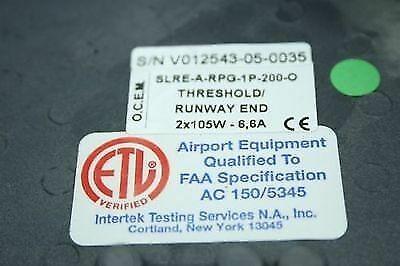

Model No. SLRE-A-PRG-1P-200-O



The SLRE is a high intensity semi-flush runway edge light that can be used for any category I, II and III ICAO , FAA and military runways. The SLRE does double duty as a threshold/runway end FAA light. These fixtures are designed to be powered by series circuits. The field installation shall be in compliance with the requirements of ICAO - Annex 14, FAA or STANAG 3316 Specs.

Compliances FAA AC 150/5345-46: L-850D
Fixture Type 850D6
Colors* RG = red/green; GR = green/red; GX = green/blank; XG = blank/green; RR = red/red; *Refer to the color symbol position: the red beam is always straight. RG means right toe-in of the green beam. GR means left toe-in of the green beam. GX means right toe-in of the green beam. XG means left toe-in of the green beam.

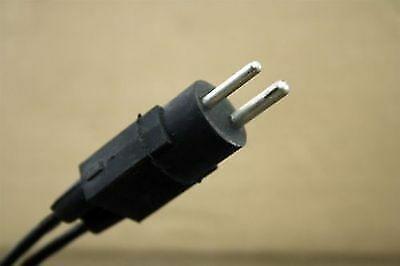

L-823 Plug Connection
Optical Assembly FAA Threshold/End
Colour(Left Side)/Colour(Right Side): Red / Green

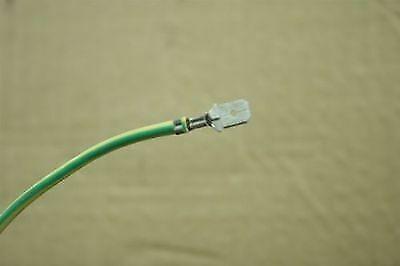

Electrical System One Cable Lead
Lamp Type 2 x 105W 6.6A Reflectorized
Mounting Assembly No Mounting Assembly

FEATURES

  • Performances and benefits:

    ½ inch protrusion above the ground: FAA Style 2 and IEC Style 3. Dome temperature less than 160° C when the light is working at 6.6 A. 1000 hours lamp rated life at 6.6 A or far over 3000 hours in field operating conditions. Significant energy savings and stable chromaticity thanks to the use of dichroic filters. Designed and manufactured with simplicity and easy to maintain.

    Features:

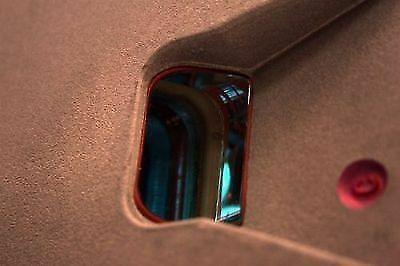

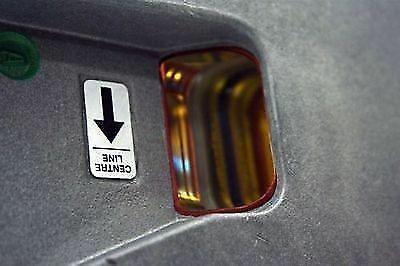

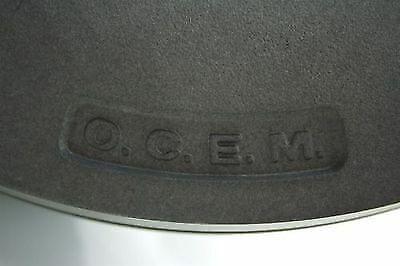

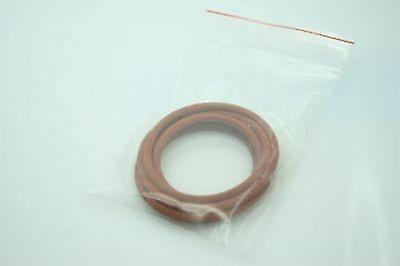

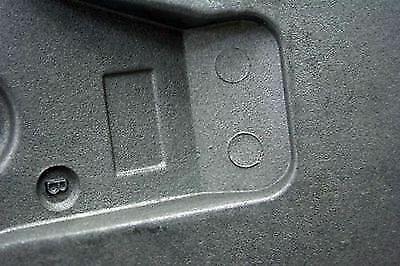

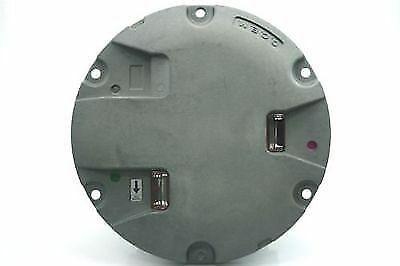

    Aluminium treated cast aluminium dome and lower cover. Bidirectional, 12” dia., with two opposite lamps. Each prism is mechanically clamped to the dome by means of a mounting plate; a customized lens gasket avoids the use of sealing. Replacement is quick and easy. No optical adjustment is required after the replacement of the lamps, filters or prisms. An O-ring placed outside around the dome avoids dirt deposits between light unit and mounting assembly. The removal of the fixture is easy thanks to the two seats provided on the dome.

    Power Supply: From 100W up to 300W series transformer



    Weight of a single unit is 14KG.
    Please note that shipping weight may differ since protecting materials will be used and added for best protection of your order.
