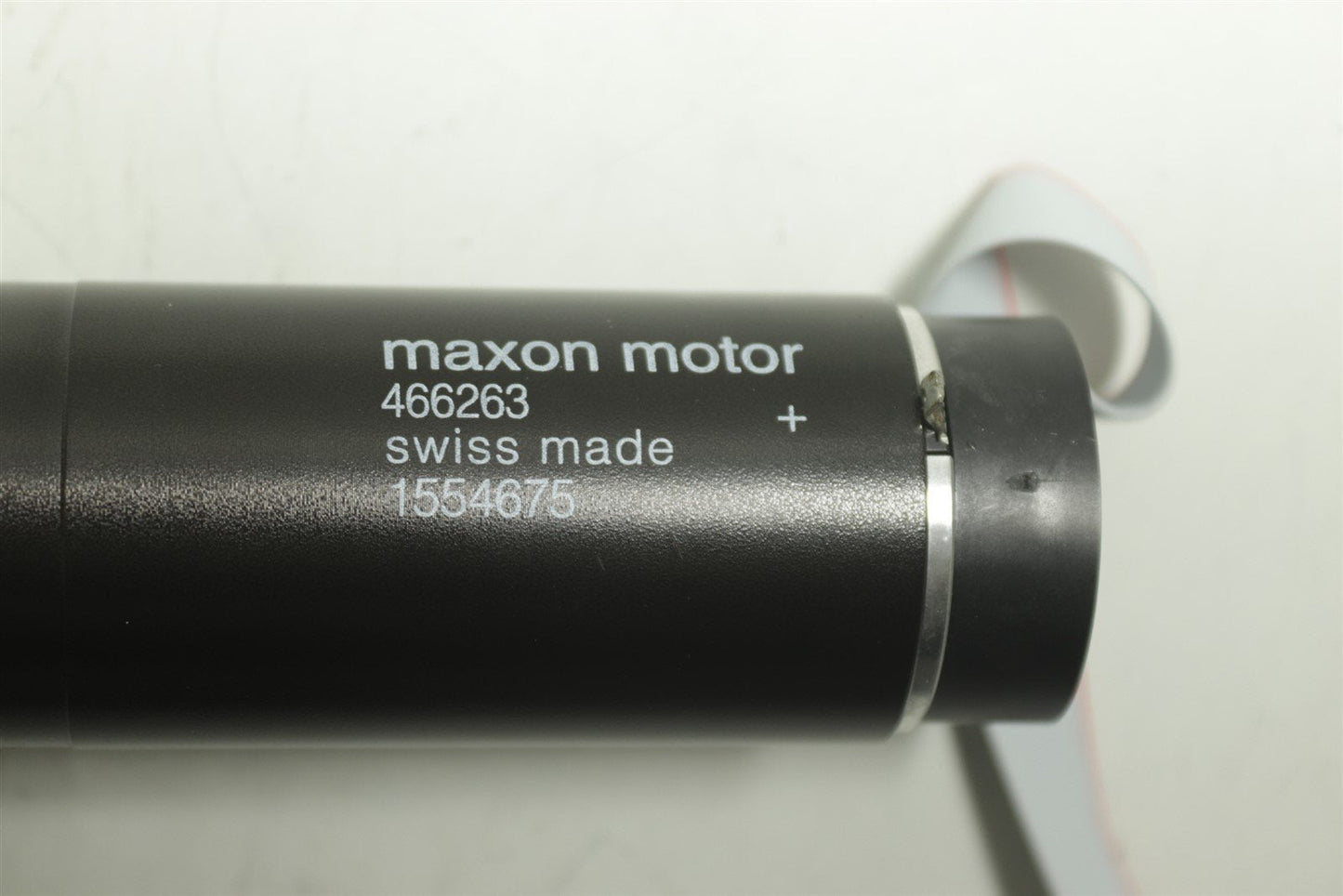

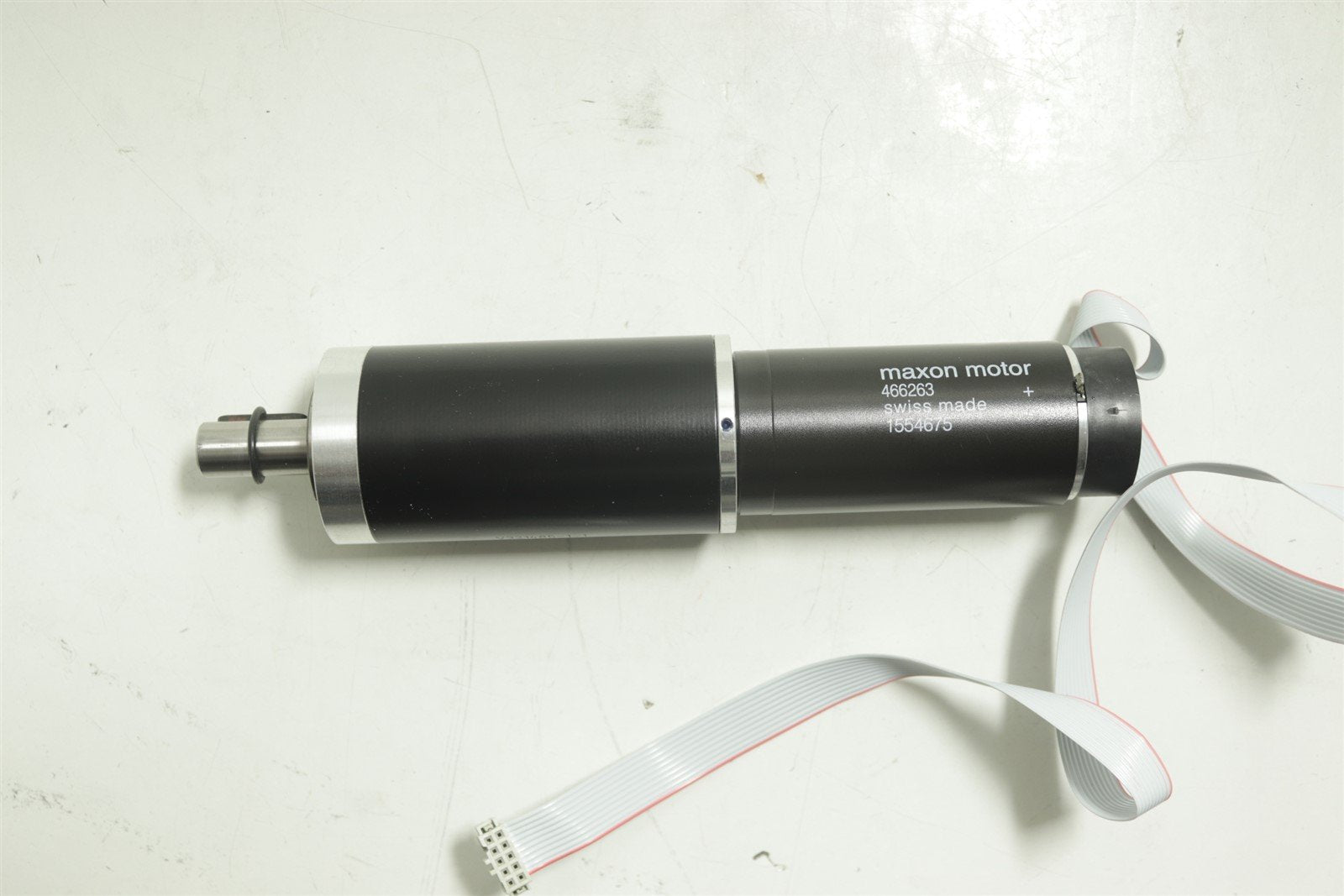

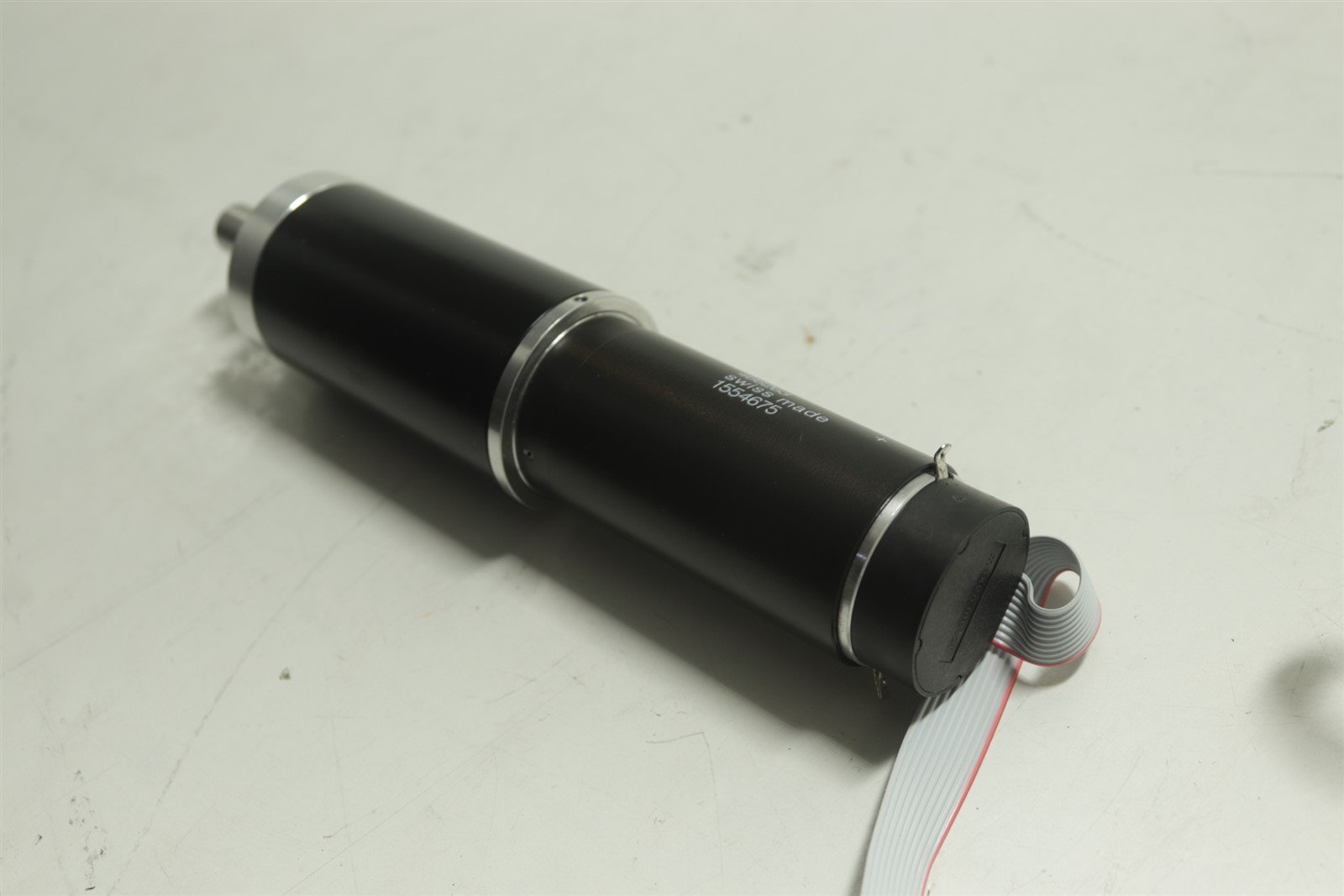

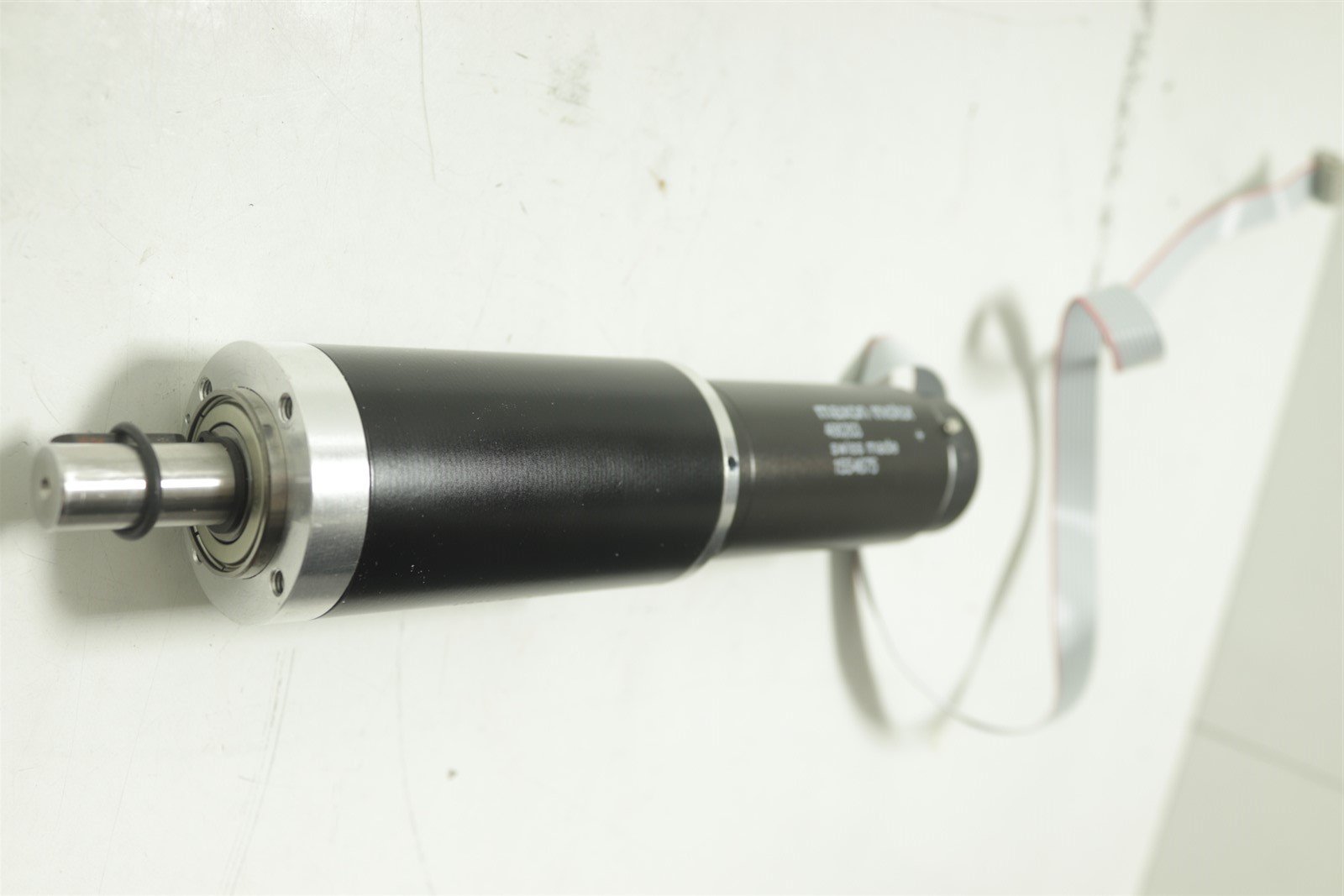

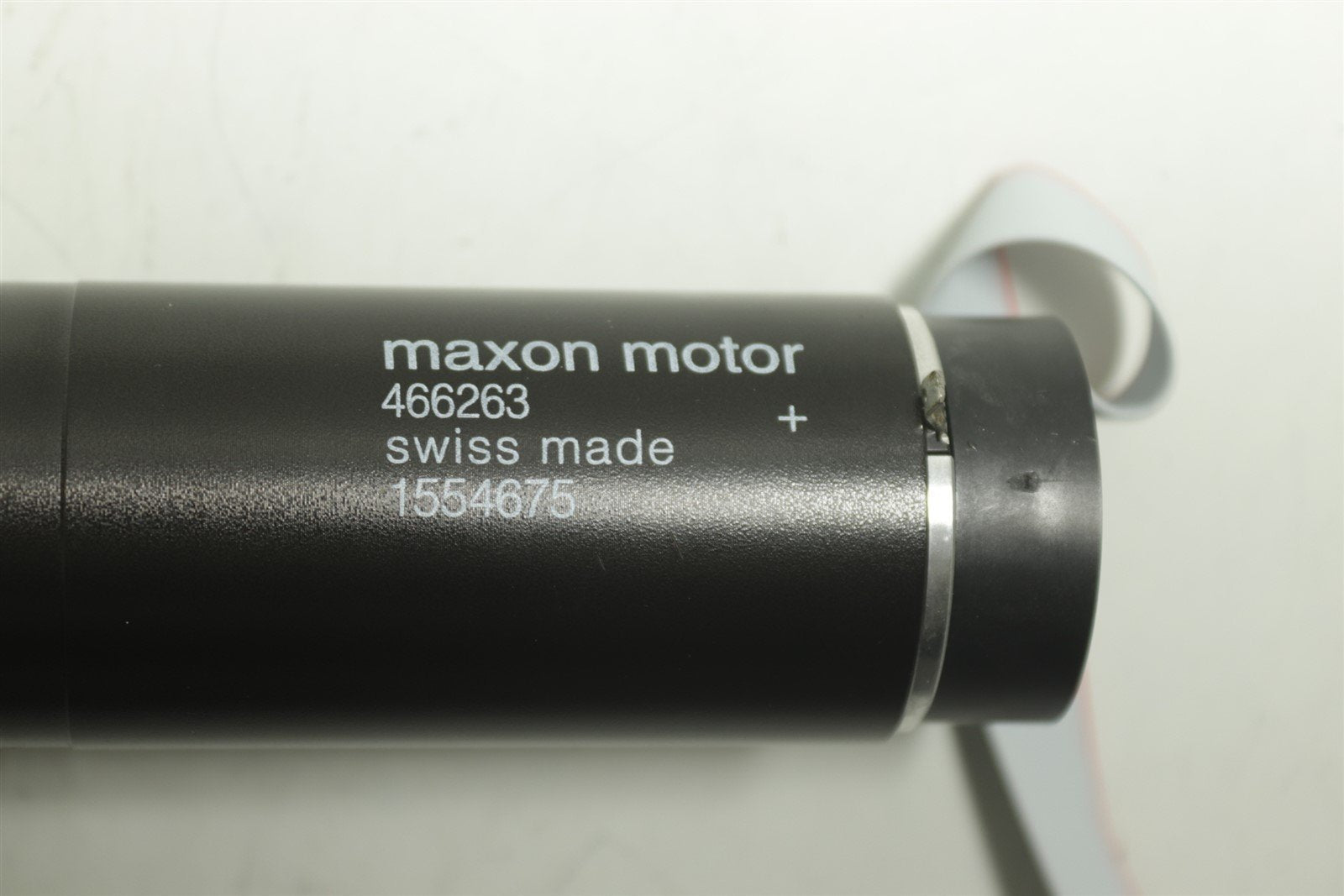

Tecan Freedom EVO Maxon Motor 12009693.01 47.022.022-00.19-319

Tecan Freedom EVO Maxon Motor 12009693.01 47.022.022-00.19-319

$500.00
$500.00
Sale Sold out
Tax included. Shipping calculated at checkout.


070312

Manufacturer

Maxon
Model 466263
Description Motor
P/n ---

Condition

Used

Additional info

Great Condition

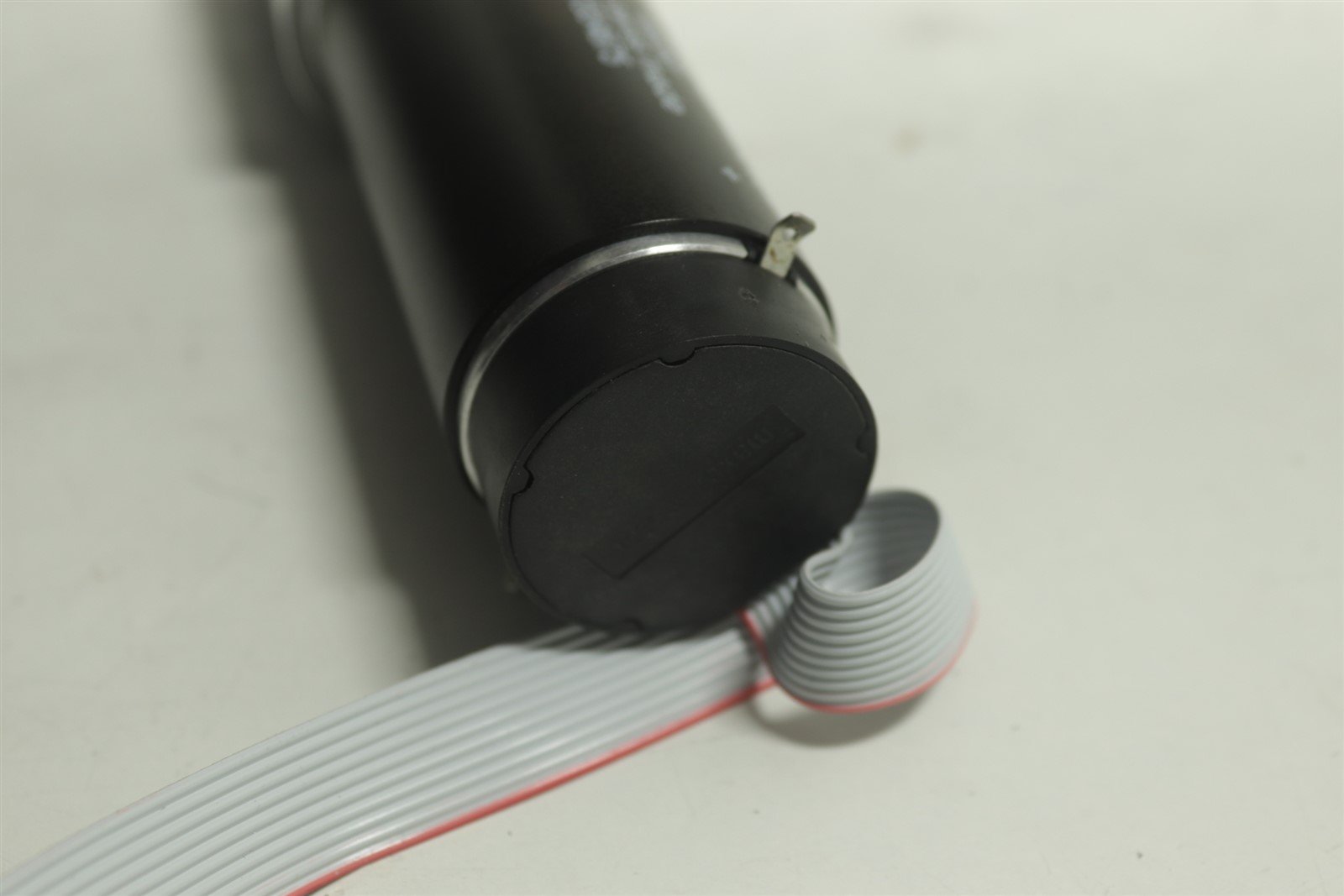

encoder

GENERAL INFORMATION
Counts per turn 512
Number of channels 3
Line Driver Yes
Max. mechanical speed 18750 rpm
TECHNICAL DATA
Supply voltage Vcc 4.7...5.25 V
Output signal TTL
Driver used logic TTL
Output current per channel 0...5 mA
Phase shift 90 °e
Phase shift, inaccuracy 45 °e
Index synchronized to AB Yes
Max. moment of inertia of code wheel 1.7 gcm²
Operating temperature -25...+85 °C


Motor
VALUES AT NOMINAL VOLTAGE
Nominal voltage 24 V
No load speed 7750 rpm
No load current 128 mA
Nominal speed 6970 rpm
Nominal torque (max. continuous torque) 107 mNm
Nominal current (max. continuous current) 3.8 A
Stall torque 1200 mNm
Stall current 41.2 A
Max. efficiency 87 %
CHARACTERISTICS
Terminal resistance 0.582 Ω
Terminal inductance 0.191 mH
Torque constant 29.2 mNm/A
Speed constant 328 rpm/V
Speed / torque gradient 6.54 rpm/mNm
Mechanical time constant 5.41 ms
Rotor inertia 79 gcm²
THERMAL DATA
Thermal resistance housing-ambient 6.2 K/W
Thermal resistance winding-housing 2 K/W
Thermal time constant winding 33 s
Thermal time constant motor 707 s
Ambient temperature -30...+100 °C
Max. winding temperature +155 °C
MECHANICAL DATA
Bearing type Waelzlager
Max. speed 12000 rpm
Axial play 0.05 - 0.15 mm
Radial play 0.025 mm
Max. axial load (dynamic) 5.6 N
Max. force for press fits (static) 110 N
(static, shaft supported) 1200 N
Max. radial load 28 N, 5 mm from flange
OTHER SPECIFICATIONS
Number of pole pairs 1
Number of commutator segments 13
Number of autoclave cycles 0
PRODUCT
Weight 340 g

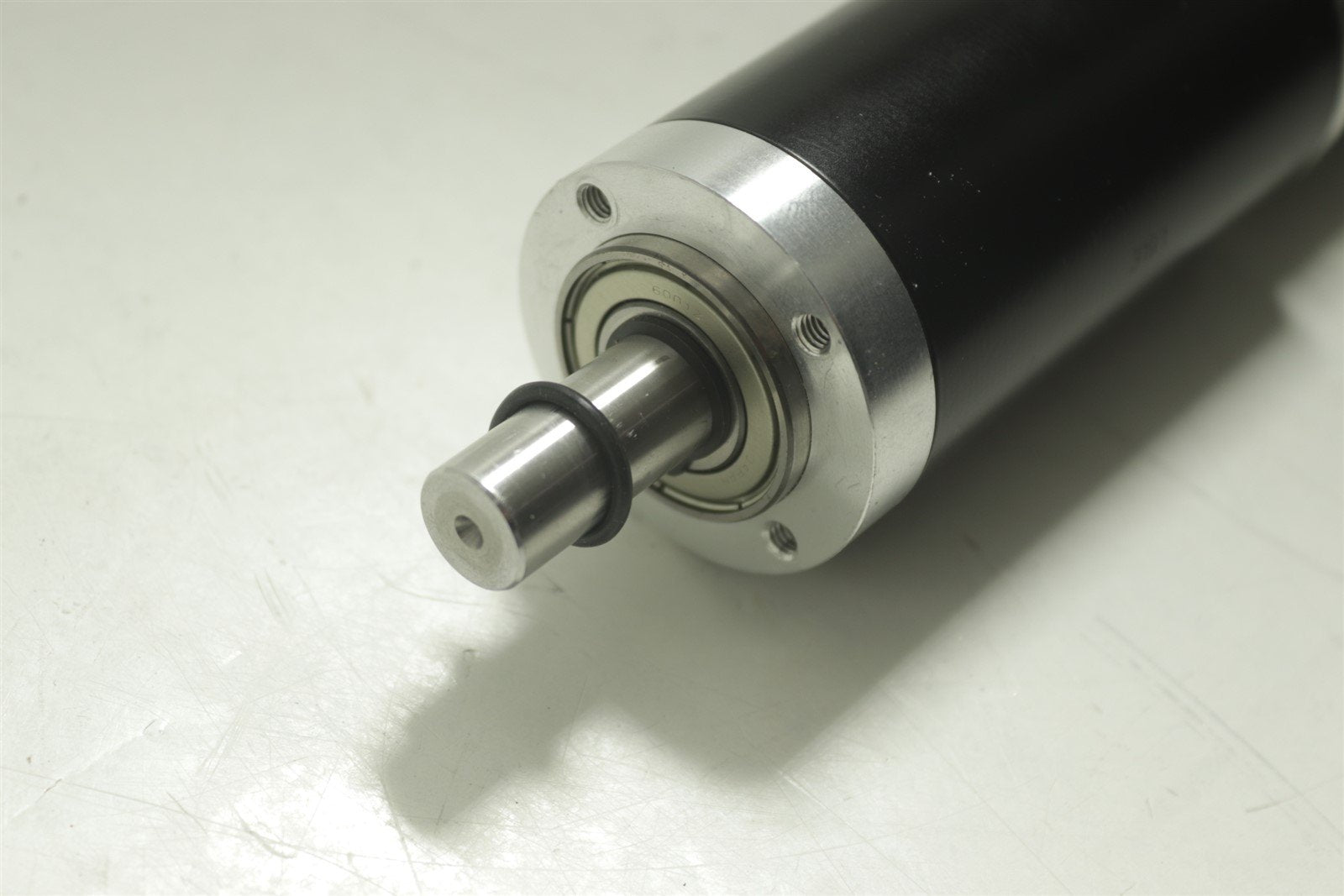

Gearhead

GENERAL INFORMATION
Gearhead type GP
Outer diameter 42 mm
Version Ceramic version
GEARHEAD DATA
Reduction 319 : 1
Absolute reduction 637/2
Max. motor shaft diameter 10 mm
Number of stages 4
Max. continuous torque 15 Nm
Max. intermittent torque 22 Nm
Direction of rotation, drive to output =
Max. efficiency 64 %
Average backlash no load 1 °
Mass inertia 15 gcm²
Gearhead length (L1) 84.5 mm
Max. transmittable power (continuous) 39 W
Max. transmittable power (intermittent) 58 W
TECHNICAL DATA
Bearing at output ball bearing
Radial play max. 0.06 mm, 12 mm from flange
Axial play max. 0.3 mm
Max. radial load 360 N, 12 mm from flange
Max. axial load (dynamic) 150 N
Max. force for press fits 300 N
Max. continuous input speed 8000 rpm
Max. intermittent input speed 8000 rpm
Recommended temperature range -40...+100 °C
Extended temperature range 100...+100 °C
Number of autoclave cycles 0
PRODUCT
Weight 560 g
